1. Ethylene Decomposition/Excretion Test

We have conducted experiments to confirm that the ethylene decomposition pad developed has ethylene decomposition and excretion activity. The verification tests were conducted as follows: 2 liters of a standard ethylene gas of 10 to 300 ppm was sealed in a sample bag, and the change in the ethylene concentration in the bag with time was measured using a semiconductor gas sensor detector gas chromatograph, using SGHA-P2 GL. As a result of the analysis, it was revealed that ethylene was decomposed by about 80% ethylene, about 130 μg in about 3 hours (Fig 1 and 2).

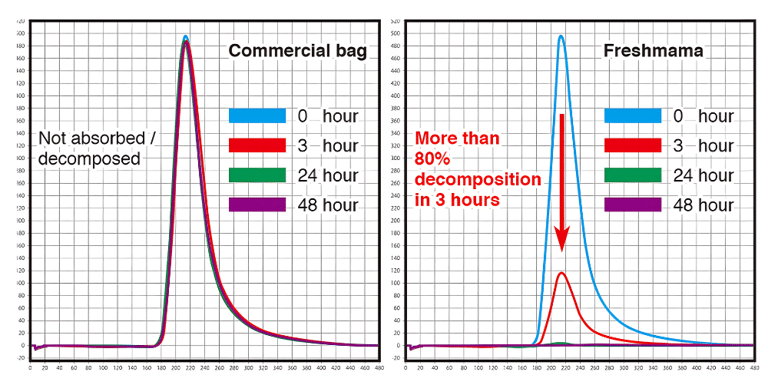

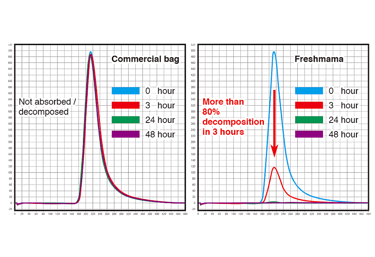

Figure 2: Comparison of Measurement Data

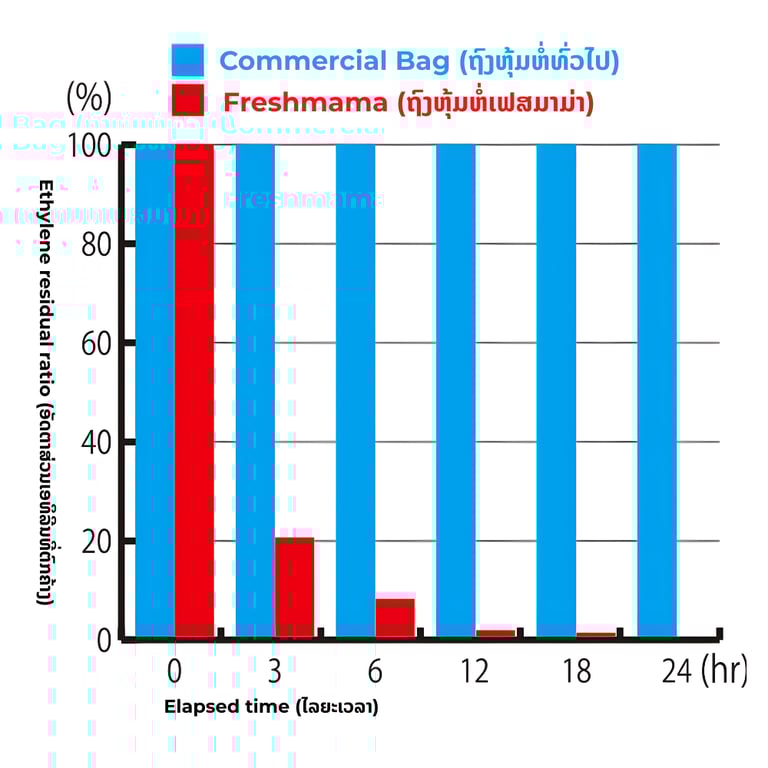

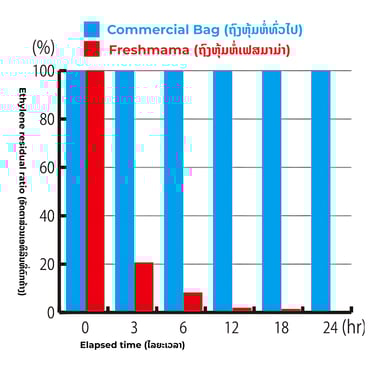

Figure 1: Ethylene Damping Test

Ethylene concentration is not dependent on ethylene concentration. It is clarified that it is absorbing and decomposing.

2. Long-Term Storage 100 Days at 5 Degrees Celsius

Helping farmers reduce waste with smart storage.

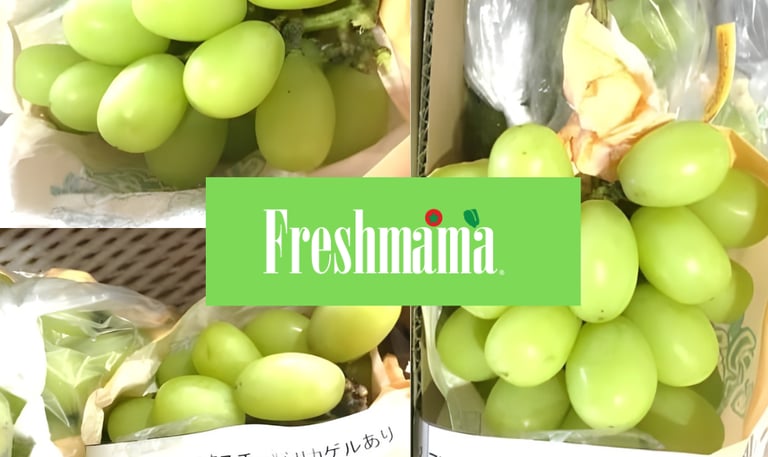

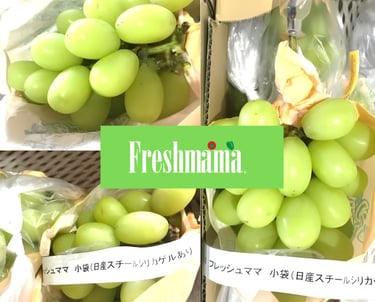

Freshmama Preservation Sheet

Our products keep produce fresher longer during transport, cutting spoilage and saving costs for distributors and retailers alike.

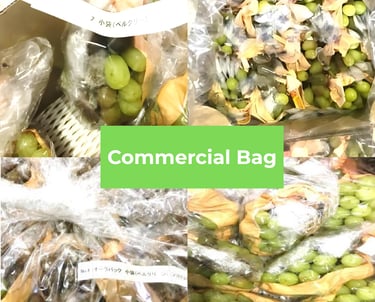

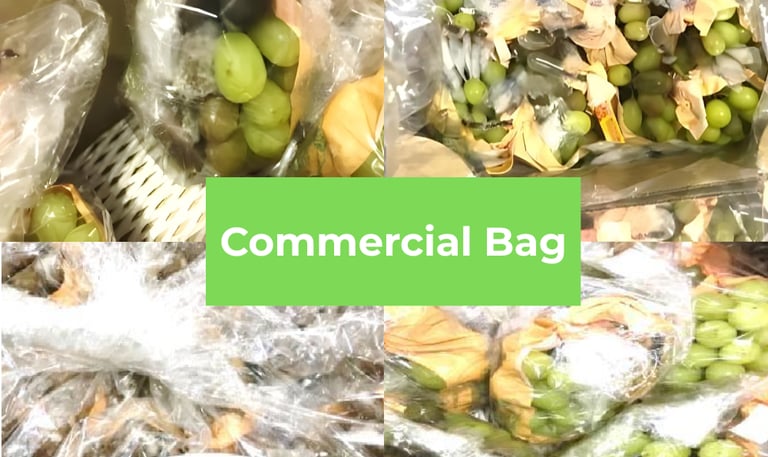

Ordinary Commercial Sheet

Designed for stores, our solutions extend shelf life and maintain freshness, helping reduce food loss at the point of sale.

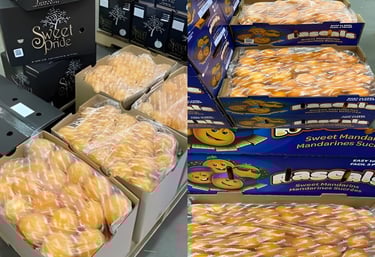

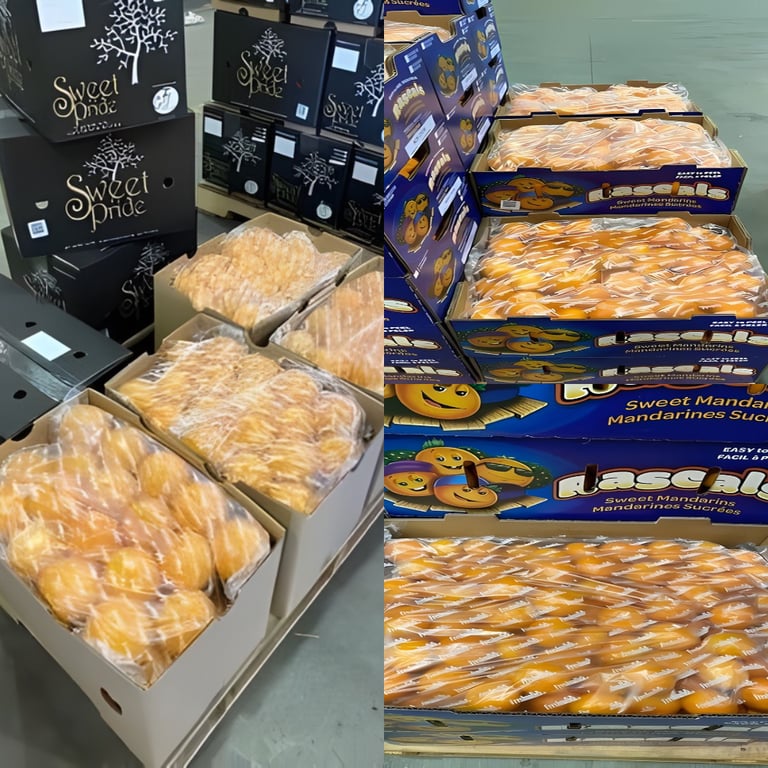

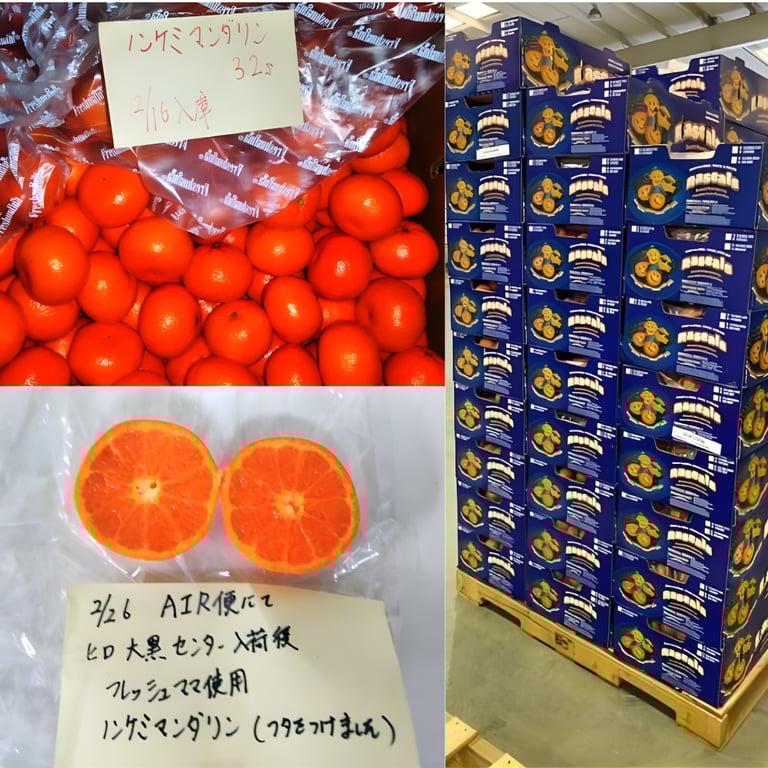

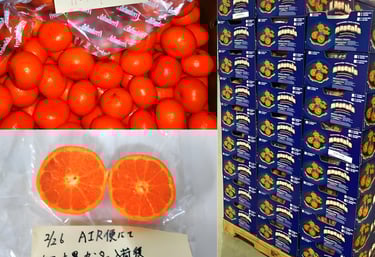

3. California Non-Chemical Mandarin 45 Days After Import to Japan

4. Verification Experiment Using Fruits and Vegetables

In order to investigate whether the fruit-derived ethylene gas was decomposed, the same amount of mini-tomatoes were enclosed in the sample bag and the control bag, and after 3 hours, 20 hours, 44 hours, 68 hours and 92 hours in the bag of ethylene gas concentration was measured. As a result, it was clarified that the ethylene concentration increases in the control bag, while the accumulation of the ethylene gas in the sample is suppressed to within 0.6 ppm.

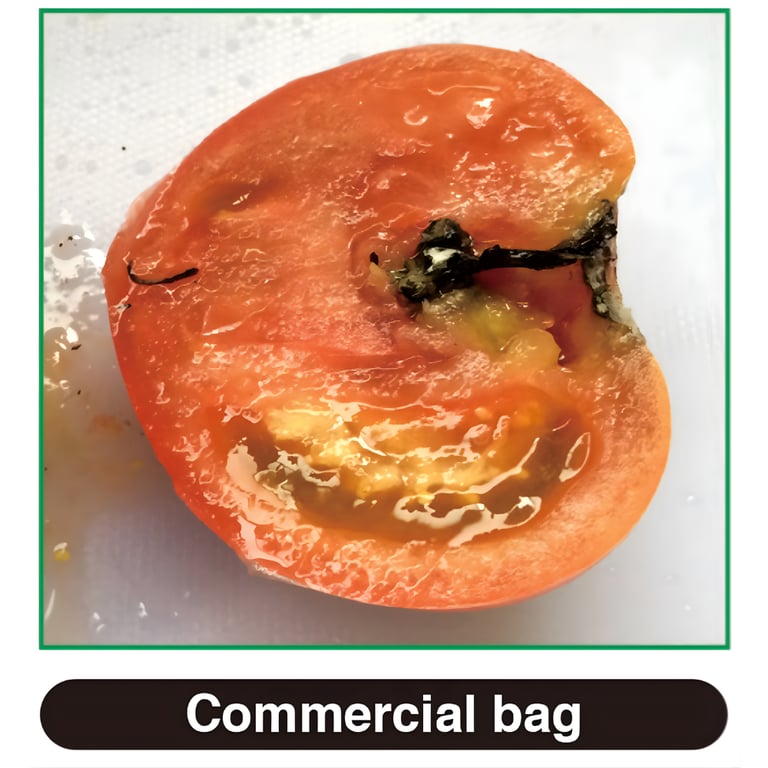

Without Freshmama

Water appeared on these tomato surfaces and corroded.

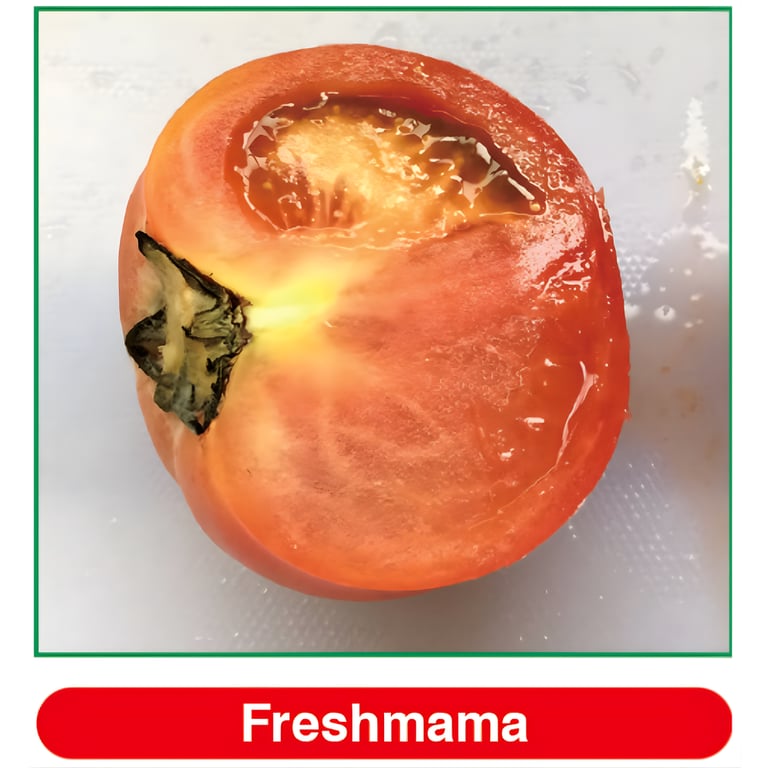

With Freshmama

Maintain fresh state.

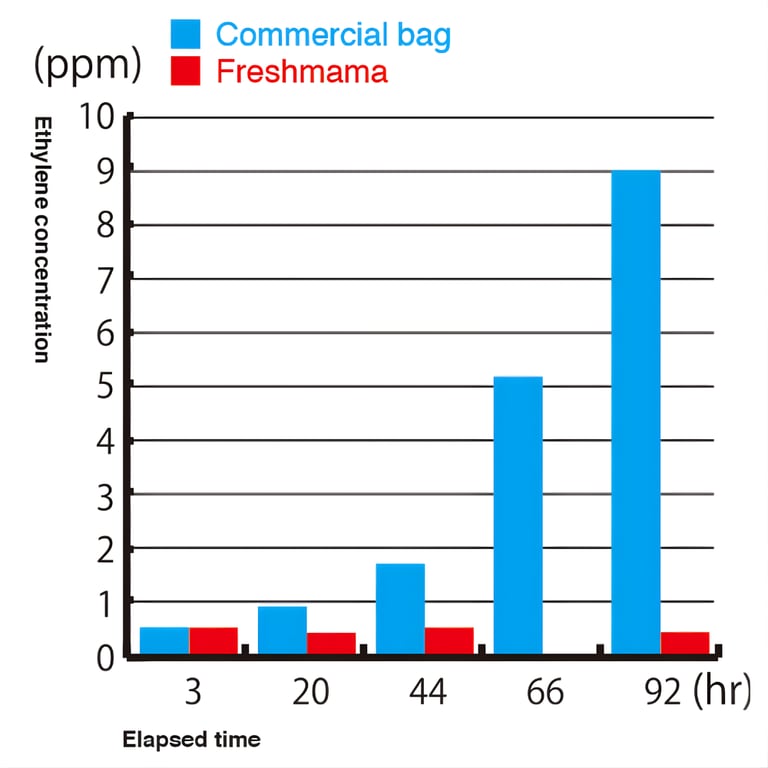

Figure 3: Ethylene Decomposition Inhibitory Effect from Mini Tomatoes

5. Papaya Demonstration Test

6. Conclusion

This document has demonstrated the ability to decompose a high concentration of ethylene in a short time. Investigation of the situation in the sample bag after decomposition of ethylene has confirmed this pad not only decomposed ethylene gas, but also excreted as carbon dioxide in water. Verification experiment was carried out on tomatoes, mini tomatoes, spinach… and also showed that this material has a fresh preservation effect.
